Universal 12V 24V Vehicle Air Conditioner Aire Acondicionado 12 Volt Car Electric Conditioning

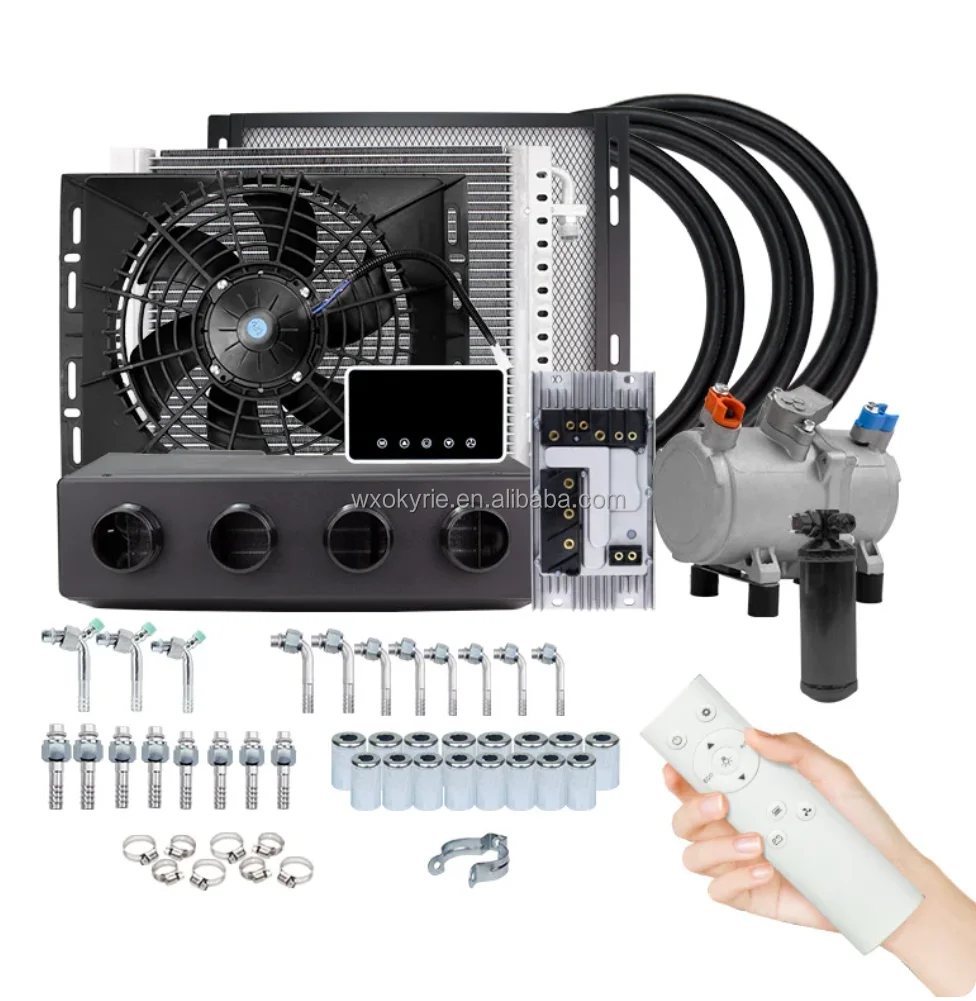

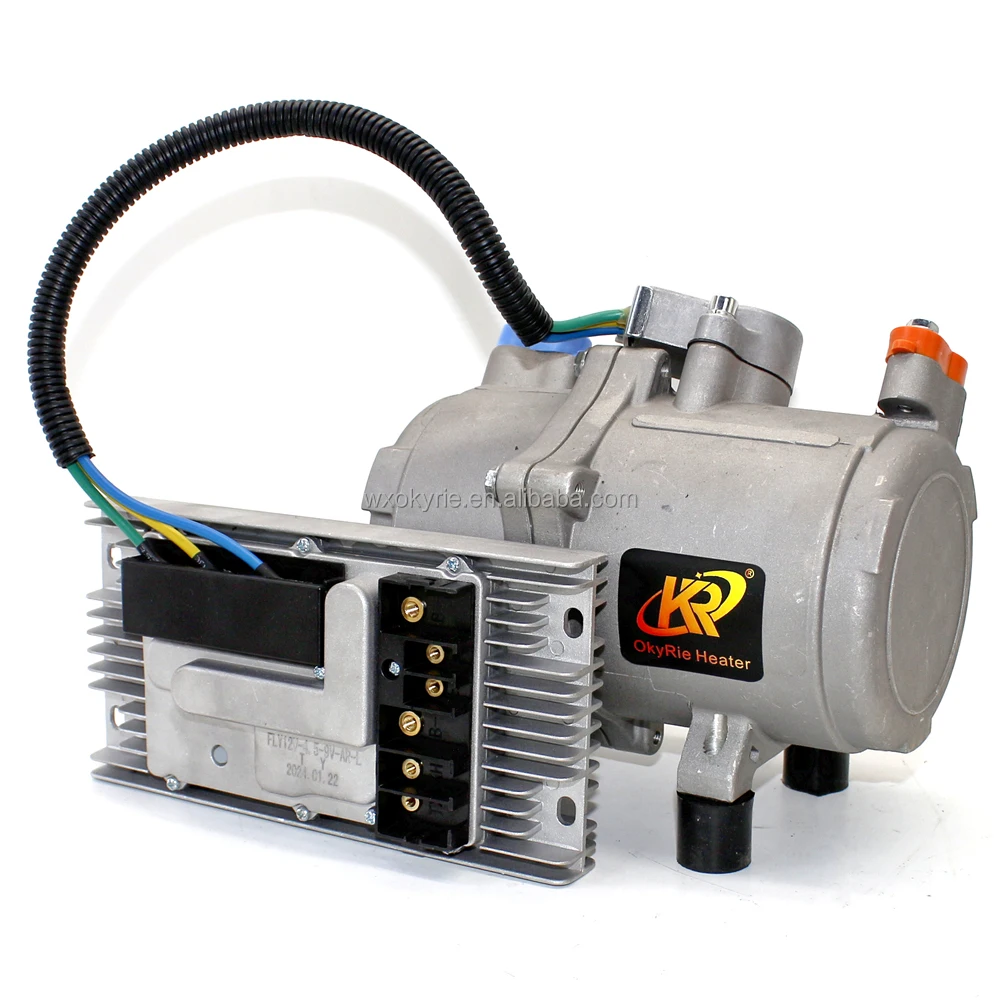

Hello and welcome! I'm Paisely, glad you're here. Pls note: Reach out for shipping/payment info on big/heavy items. Product Overview 12V/24V DC Variable Frequency Electric Hidden Car Air Conditioner Auto Parking Conditioner for RV Truck Use Name Electric Air Conditioning Compressor 12V 24V Condition 100% Brand New Rated voltage DC 12V / 24V Rated power 550W / 850w Cooling capacity 1.688KW / 2.465KW (5731BTU / 8410BTU) Compressor style Semi-closed Horizontal Scroll Compressor Working voltage range 10.5VDC～15VDC / 19.5VDC～32VDC Current 45A+-2 / 35A+-2 Rated speed 1800rpm / 3000rpm Oil POE / 130ml - 150ml (Oil has already in compressor ) Description: This electric air conditioning system (Inside unit + outside unit) can be installed to anywhere you want. It runs by battery(Generator). Even you got your engine stalled, you still can use this air conditioner. Low noise, energy-saving, environmental protection is the best choice for you. It will help you save thousand dollars on gas every year. Generator (battery) request: 12V compressor require generator ampere over 100a. 24V compressor require generator ampere over 70A. About vehicle battery. If you want to use the electric compressor after parking, then your vehicle battery capacity should be large enough. For example, 12V compressor current about 45A. So one new and full charged 45A battery can run the compressor for one hour. Compressor data: Compressor style: Semi-closed Horizontal Scroll Compressor Material: Aluminum alloy Voltage: DC 12V / 24V Working voltage range: 10.5VDC～15VDC / 19.5VDC～32VDC Current: 45A+-2 / 35A+-2 Displacement: 21cm³/r Cooling capacity: 1.688KW / 2.465KW (5731BTU / 8410BTU) Speed range: 1000 - 2300rpm / 1000 - 3000rpm Rated power: 550W / 850w Rated speed: 1800rpm / 3000rpm Oil: POE / 130ml - 150ml (Oil has already in compressor ) Gas/Refrigerant: R134a Condensing temperature range: 26.7～68℃ Evaporating temperature range: -10～12.5℃ Refrigerant leakage rate: Product List ① 1 x Evaporator with mounting bracket ② 1 x Radiator fan / Radiator/ Radiator protector ③ 1 x Electric compressor ④ Air and temperature control panel ⑤ 2 meters x Electric compressor motor cable / dryer cable / 2 meters x Power cable / 2 meters x Electric compressor temperature sensor cable /2 meters x Radiator fan cable ⑥ Electric compressor control board ⑦ Remote control ⑧5 meters x #6 hose 3 meters x #8 hose 5 meters x #10 hose ⑨ 1 x dryer ⑩ 1 x clamp ⑪ 8 x hose clips. ⑫ 4 x #6 fitting / 2 x #8 fitting / 2 x #10 fitting ⑬ 1 x #6 #8 #10 fitting with service port ⑭ 4 x #6 fitting / 2 x #8 fitting / 2 x #10 fitting ⑮ 8 x #6 steel crimp ferrule / 4 x #8 steel crimp ferrule / 4 x #10 steel crimp ferrule ⑯ 2x Electric compressor fittings Brushless controller unit: Brushless direct current controller 1. Over / Under voltage protection: DC 12V -- ( 21V / 10.5V ) DC 24V -- ( 42V / 20.5V ) 2. Max power: 600W / 1200W 3. Working temperature: Under 50℃ Outside unit: Power : 120w Outside Unit Dimension (Inch): 18.1 x 9 x 14inch Whole unit : Cooling capacity: 1680/2500w (5724/8532Btu/h) R134a gas (Freon): R134a R134a gas (Freon) needed: 600g-1200g Cooling performance Remark: Speed tolerance ±1%. Actual test cooling capacity data not less than 90% of data in the table. Actual test power rate not exceed 110% of data in the table. Dimension: Compressor body not to be tilted (the angle between the main axis of the compressor and the horizon should not be greater than 5°) Evaporator Evaporator with three positions air switch and temperature switch. 1.5 Ton O-ring expansion valve, Size #6 and #10 Strong PP case Electric fan 120W strong airflow (pulling air) radiator fan Radiator protector net for stone attacked. Radiator with #6 and #8 male O-ring fittings. Electric compressor Four thick rubber leg for shockproof Four extended cable. From 2 to 12 square millimeter. Safety and qualified Dryer/Hose Dryer with glass. Size #6 to #6 Hose with three layer protection. No leaking and strong. Testing Process Evaporator Cooling Fan Compressor Condenser Wiring harness tube Installation accessories Workshop Show OkyRie Production Workshop Company Profile Q1. How is quality ensured? A. All our processes strictly adhere to CE procedures. If the product does not work property as described, and the problem is proven to be at our fault, we will provide exchange services for the same specific item. Always a pre-production sample before mass production. Always final Inspection before shipment. Q2. Do you make customer’s auto AC parts? A. Yes,you can send us samples and we can develop the new models especially for you. Q3.
